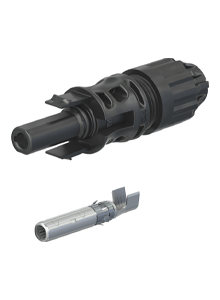

MC4-Evo2A 1500V DC Female Connector 0316 Small – Single

Item number: MC4-EVO2A-0316-FEM

Manufacturer: Staubli

Category: Accessories

Your Segen price Get in touch with us

The MC4-Evo2A is the latest addition to the Stäubli Electrical Connector PV portfolio.

MULTILAM Technology, has proven the quality and durability several 100 million times since 2004

Key Features:

  • Internationally certified with IEC, UL, JET, cTÜVus
  • Approved for 1500 V DC (IEC)
  • Compatible with 4mm2 - 6mm2 cable thickness
  • Suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray and high IP class (IP68)

MC4 Evo2A Female cable coupler as individual part (including insulating part)   PLEASE NOTE THIS IS A NEW MC4-EVO2 CONNECTOR AND IT WILL REQUIRE SPECIAL MC4-EVO2 CRIMPING TOOL, AVAILABLE HERE.  THE STANDARD MC4 TOOLS SHOULD NOT BE USED WITH THIS TYPE OF CONNECTOR.

DI comes with Maroon seal.

Supplier Code: 32.0316P0001

Rated current: 45A 4mm2 and 53A 6mm2 cables
