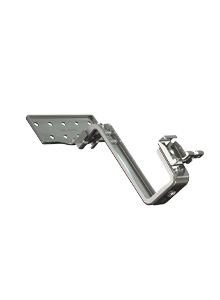

ClickFit EVO Truss Hook

SKU: ESD-1008045 Categories: , ,

Description

ClickFit Evo is a mounting solution for tiled, steel, corrugated and standing seam roofs. Developed by Esdec to be quicker, simpler, and safer. ClickFit EVO has a smart click connection that allows for quick and easy installation of solar to the roof. Small number of components and installation steps means that panels can be installed up to 50% quicker.

  • Universal Roof Truss for all roof tile/batten combinations
  • Easy mounting process from the top
  • Stepless adjustment of height and width
  • Better point load distribution, lower risk of tile breakage and leakage
  • Self-aligning click connection: easier and faster
  • Can be used for horizontal and vertical mounting Integrated cable management.

Can be used in combination with the EPDM Rubber spacer (ESD-1008063). Can also be used alongside the ClickFit EVO Universal hook on the same roof.

Please Note: This roof anchor requires wood screws but these are not provided for by Esdec. Segen recommend using Dish-shaped wood screw 6x120mm.


Segen highly encourage installers to sign up to the Esdec online academy https://academy.esdec.com/#/login to maximise on ease and speed of installation.
